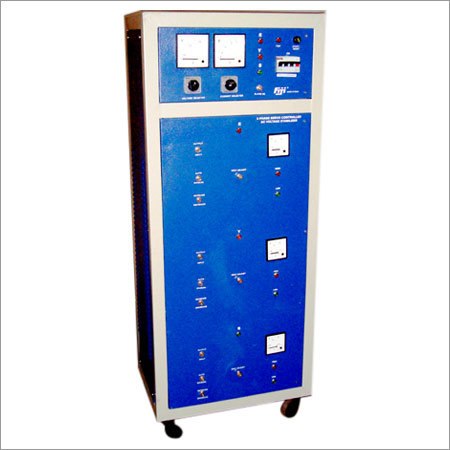

Industrial Servo Voltage Stabilizers

01)

Input Voltage

Wide variation of input voltage range starting from90V-265V in the lower side & 220V-290V on the higher side for single phase stabilizer & 160V-500V in the lower side and 380V-500V on the higher side for 3Phase variety as per customersâ„¢ specification

02)

Output Voltage

The output Voltage can be set anywhere between 220V-240V in Single Phase and 380V-440V in Three Phase.

03)

Output Variation

± 1 %

04)

System

Balanced/Unbalanced (Individual phase correction).

05)

Control

Automatic / Manual.

06)

Instrumentation

Voltmeter on each phase and Voltmeter and Amp meter to indicate Output Line Voltage and Output Current with the help of selector switch.

07)

Frequency

47 Hz to 53Hz (Sinusoidal)

08)

Input Indication

High and low voltage indicators with Audible alarm.

09)

Output Wave Form

The Out put wave form is true replica of the input.

10)

Correction rate

25V/sec for each phase.

11)

Ambient Temperature

0°c - 45°c

12)

Type of Cooling

Air Cooled

13)

Type of Motor

AC step synchronous Motor

14)

Protection

1) A Circuit Breaker is provided at the output for over load /
short Circuit Protection
